Heretic AD612 Loudspeakers
FROM CANADA AND INSPIRED BY VINTAGE ALTEC CABINETS, THE NEW HERETIC AD612 LOUDSPEAKERS
The Heretic AD612 is inspired by the Altec 612 Utility cabinet. They are a two-way, ductless, high sensitivity, coaxial monitor, designed and built in Canada.
HERETIC AD612 LOUDSPEAKERS
Robert Gaboury the owner and designer of heretic Loudspeakers told us: “We kept the basic shape and proportions of the Altec design, but re-tuned and re-engineered for our own 12 in. coaxial drive unit, with ferrite magnetics on woofer and Neo 1 in. compression driver“.
CROSSOVER
The crossover is a serial type Linkwitz-Riley second order crossover that took over two years for Robert and his team to fine tune. The speakers are designed to be room friendly and work with it, with close to wall placement advised.
SENSITIVITY
Heretic loudspeakers are engineered to work with all amplifiers, including high quality, low power, tube or valve amplifiers, the Heretic AD612 has a sensitivity of 97 dB @ 2,83V @ 1 M; 35 to 23000Hz (typical in-room 30 to 20kHz).
CABINETS

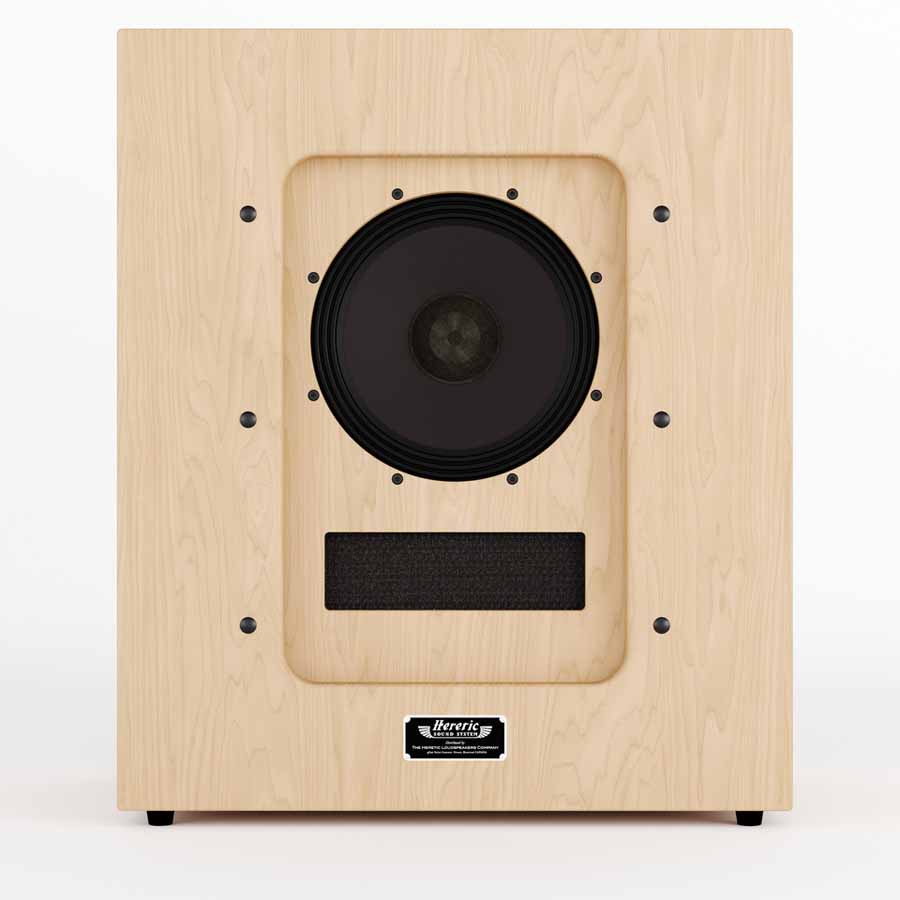

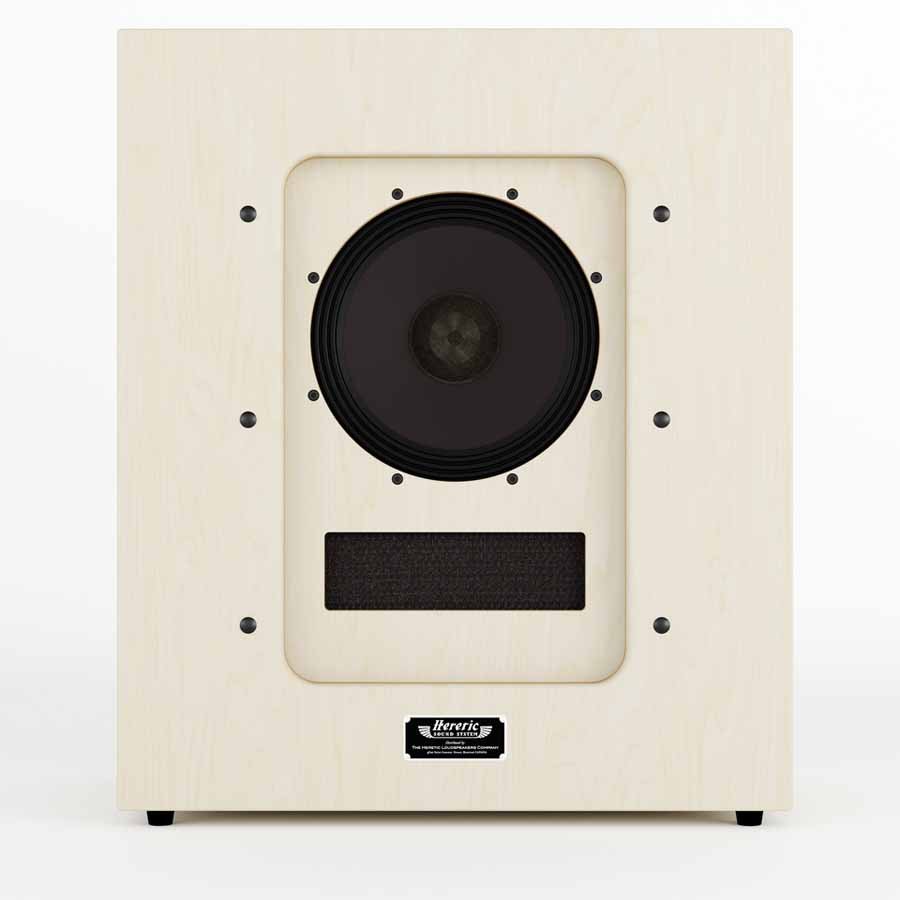

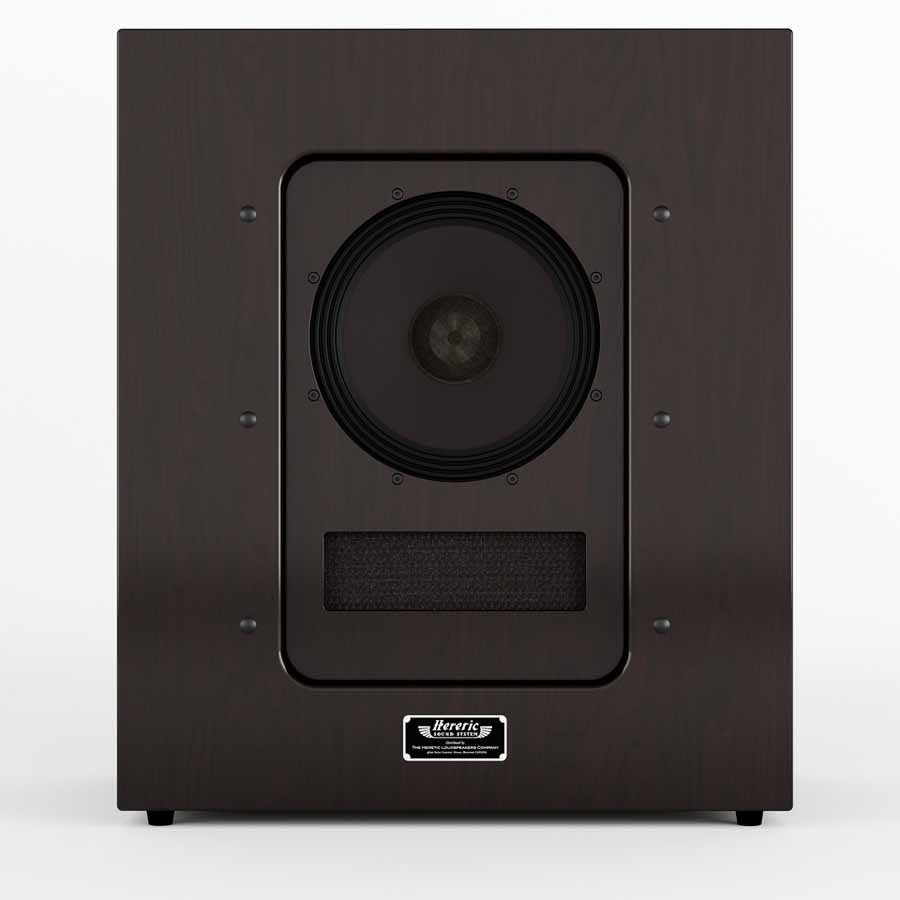

The cabinet is made from FSC-certified 12-ply premium birch plywood and is hand finished and hand polished using Allback linseed oil/beeswax that contains no solvent. Stock colours are White Bleached, Natural, Brown and Black. There are also options for over twenty custom colours.
HERETIC AD612 SPECIFICATIONS
2-way, ductless, high efficiency 2 way coaxial monitor. Serial Linkwitz-Riley second order network, FSC 12 ply, birch plywood construction. Mil spec circuit board.
Components: 303 Heretic coaxial transducer
Low frequencies: 12 in. high power, low frequency transducer
High frequencies: 1 in., coaxial compression driver
Horn profile: Short exponential.
Frequency response: 40 Hz to 22 000 Hz – 6 dB – typical room response 32 Hz to 20 000 Hz
Recommended amplifier power: 3 to 300 watts, unclipped
Impedance: 8 Ω
Sensitivity: 97 dB @ 2.83 V @ 1M.
Crossover: Corner frequency: 1,7 kHz; Type: 2nd order Serial type Linkwitz-Riley, Air core inductors, Mundorf© Capacitors.
Enclosure Dimensions: 30,25 in. high, 25,5 in. wide, 17.75 in. depth; 77 cm high, 65 cm wide, 45 cm deep
Weight: 68 lbs / 40 kg, Volume: 7 cubic feet, 198 litres.
Connection: Neutrik Speaker Isolated connectors.
HERETIC AD612 LOUDSPEAKERS PRICE
Retail price is $9290 USD
HiFi Pig Says: A very cool loudspeaker that will be popular with those looking for a vintage-inspired design with up-to-date technology.
