SMSL R100 Brings R2R Conversion And Web EQ To Desktop Audio

A DAC converts the digital data from a computer, streamer or CD transport into an analogue signal that an amplifier or pair of active speakers can use. Most modern DACs rely on highly integrated converter chips. The R100 instead uses two Analog Devices AD1861-J chips in an R2R, or resistor-ladder, arrangement.

In simple terms, a resistor ladder uses carefully matched electrical steps to rebuild the music waveform. It is a design often chosen by listeners who want an alternative to the usual modern DAC architecture. SMSL describes the result as natural and fatigue-free, but that is the maker’s claim rather than an independent listening verdict.

Quick Reference

The SMSL R100 is a small desktop digital-to-analogue converter with an unusual resistor-ladder design, modern digital inputs and browser-based equalisation.

Product: SMSL R100 desktop R2R DAC

Price: $289 through Apos Audio

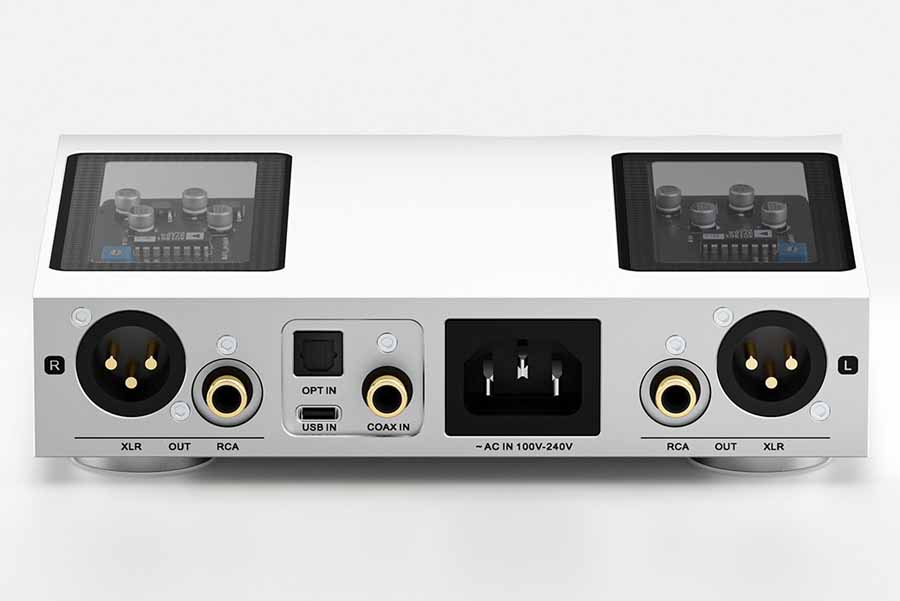

Inputs: USB, optical and coaxial digital

Outputs: Balanced XLR and unbalanced RCA line outputs

Best For: Building a computer or streamer-based HiFi system with an amplifier or active speakers

What It Connects To

USB is the obvious input for a laptop, desktop computer or compatible phone. Optical and coaxial sockets can take a television, CD transport, games console or streamer. The USB input accepts PCM files up to 32-bit/768kHz and DSD up to DSD512, while optical and coaxial inputs support PCM up to 24-bit/192kHz and DSD64 using DoP. These numbers describe the files the R100 can accept; they do not automatically guarantee better sound.

On the output side, RCA sockets work with most amplifiers and active speakers. Balanced XLR connections can help reject electrical noise when used with compatible equipment. The R100 is a line-level DAC, not a headphone amplifier, so wired headphones still need a separate headphone amp.

Web EQ And Desktop Design

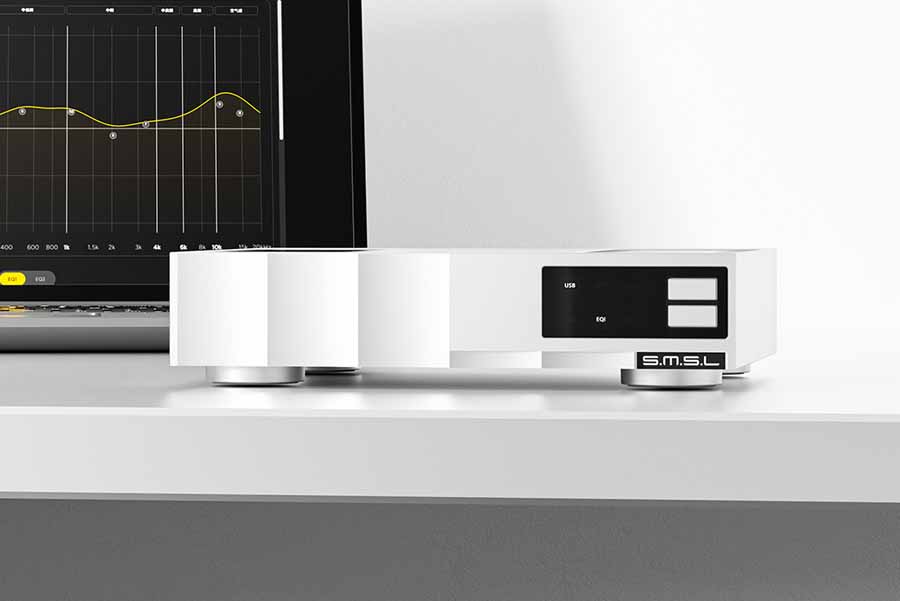

SMSL includes a browser-based parametric equaliser, or PEQ. This lets the user adjust selected frequency ranges more precisely than basic bass and treble controls, without installing a dedicated driver. It can be useful for taming a boomy desk position or making small speakers sound more balanced, although large corrections should be used carefully.

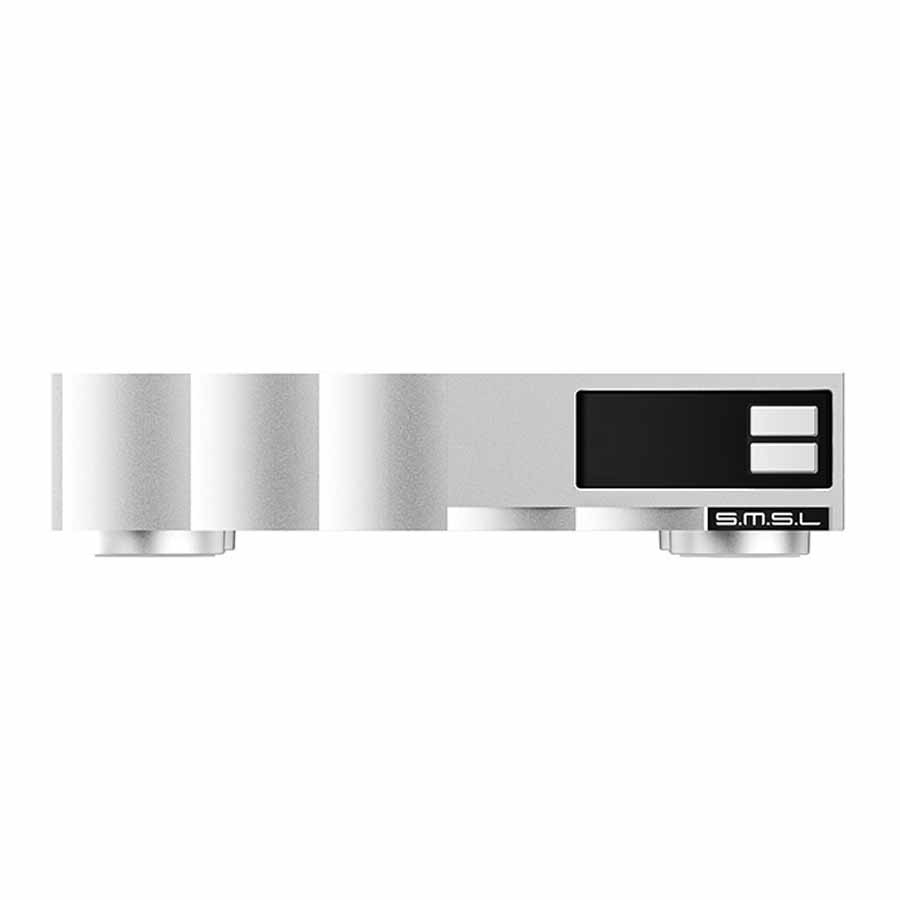

The aluminium case has two transparent top windows that show the circuitry, giving the R100 a distinctive look without adding another screen to the desk. A low-jitter clock system is intended to keep the timing of the digital signal stable, while SMSL also highlights its de-glitch circuitry for reducing unwanted switching artefacts.

Who It Is For

The R100 makes most sense for a newcomer who already owns active speakers or an amplifier and wants a flexible digital hub. Its $289 price is approachable by specialist-HiFi standards, but it is not a complete listening system. Anyone starting from nothing should budget for speakers, amplification and cables as well.

Price And Availability

SMSL R100 is $289. Prices and stock may vary by country and seller.
