Furutech CF-601M NCF And Furutech CF-602F NCF XLR Connectors

July 21, 2022

FURUTECH CF-601M NCF AND FURUTECH CF-602F NCF ARE THE BRANDS FIRST TO FEATURE THEIR NANO CRYSTAL FORMULA MATERIAL

Furutech of Tokyo, Japan has announced the release of their first XLR connectors to feature the antistatic, antiresonance material NCF.

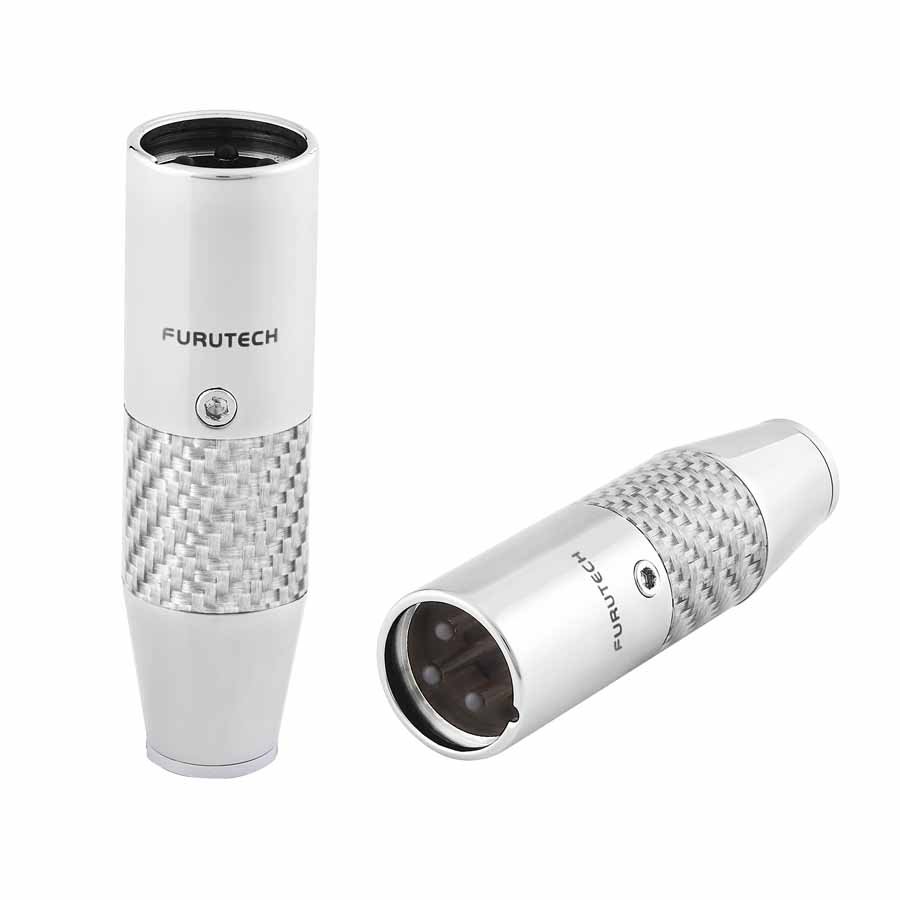

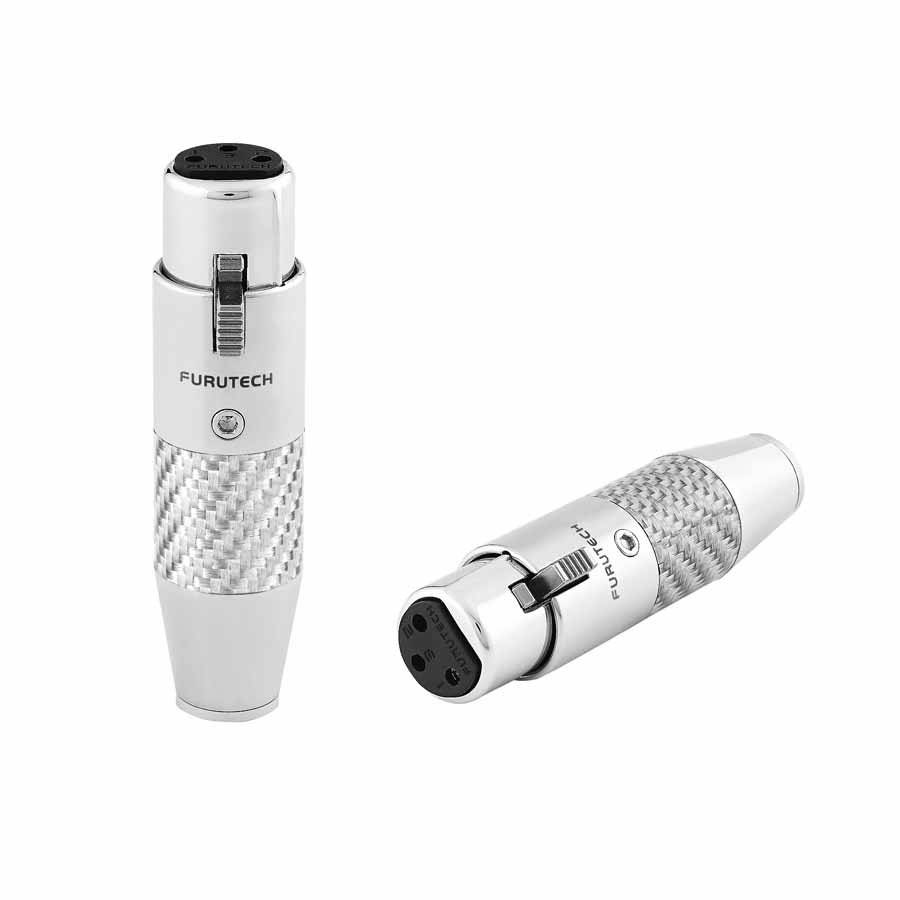

The new XLR connectors are the Furutech CF-601M NCF and Furutech CF-602F NCF.

NANO CRYSTAL FORMULA

Furutech’s new high-end XLR Connectors are the brand’s first high-performance balanced signal connectors to feature Nano Crystal² Formula (NCF). This material is the result of Furutech’s 30 plus year effort to eliminate electrical and mechanical resonance from signal and power transmission in high performance audio and video applications.

FURUTECH CF-601M NCF AND FURUTECH CF-602F NCF XLR CONNECTORS

The CF-601M NCF and CF-602F NCF feature bodies formed with NCF Liquid Crystal Polymer Resin. The resin incorporates nylon, fiberglass, nano-sized crystalline piezo ceramic particles, carbon powder and Furutech special “NCF” anti-resonance damping material. The same special NCF damping material is injected into the CF-601M NCF’s rhodium-plated α (Alpha) Pure copper one-piece construction conductor pins.

HOUSING

The housing is a multilayer hybrid NCF carbon housing composed of an outer hard clear coat over with another layer of Hybrid NCF Silver plated 3k carbon fibre on a nonmagnetic stainless-steel Housing.

CABLE FIXING

Furutech’s new high-end XLR Connectors feature set screw and solder contacts to secure the wire. They are specified for cable with a maximum diameter of 10mm. They accommodate 14AWG (2.08 sq.mm) max. stranded wire / 12AWG (3.3 sq.mm) max solid core wire. Wire diameter 2.1mm max.
